178964-7
Manufacturer:
TE Connectivity
Mfr.Part #:
178964-7
Datasheet:
Description:

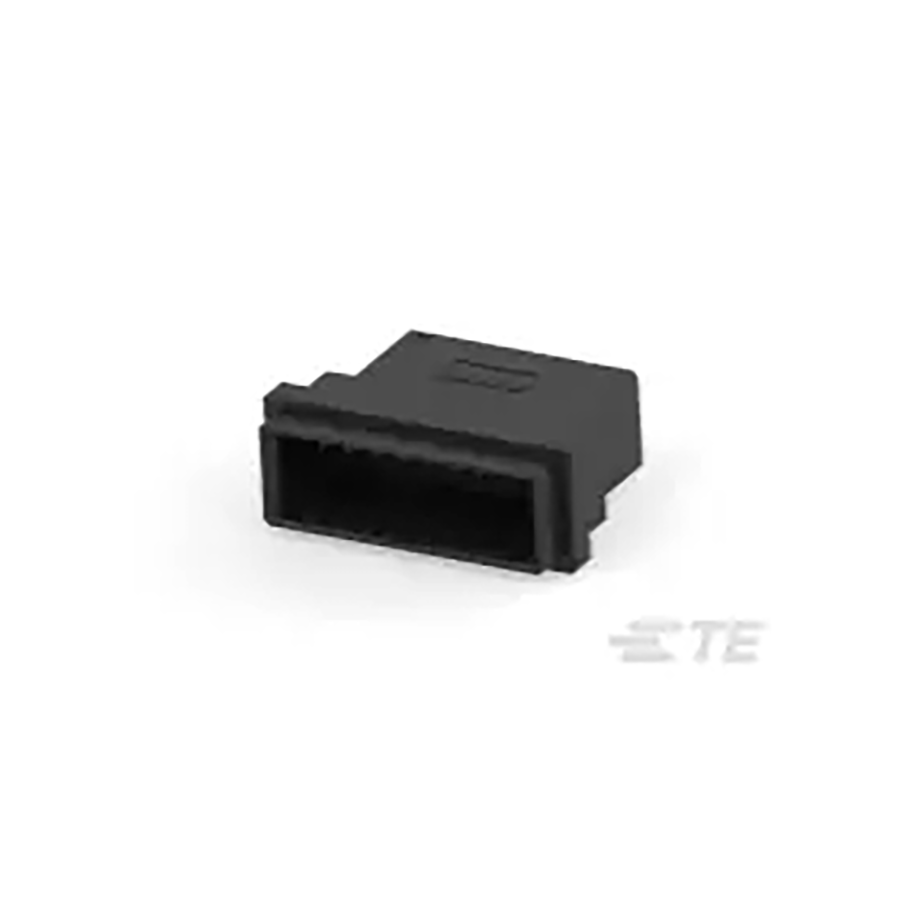

Headers and Wire Housings Cable, Free Hanging Plug Number of Positions:16 Pitch:3.80746 mm
| Parameter | Value |
|---|---|
| Length | 44.62 mm |
| Width | 17.7546 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 33.6 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 33.6 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Pitch | 3.80746 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| ELV | Compliant |
| Connector Type | Plug |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 5.08 mm |
| Housing Material | Polyester |
| Connector System | Wire-to-Wire |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Contact Gender | Male |
| VDE Tested | No |
| Preloaded | No |
| Sealable | No |
Stock: 2156
Distributors
pcbx
pcbxUnit Price$0.58406
Ext.Price$0.58406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58406 | $0.58406 |
| 10 | $0.52310 | $5.23100 |
| 25 | $0.50315 | $12.57875 |
| 50 | $0.48396 | $24.19800 |
| 100 | $0.46550 | $46.55000 |
| 300 | $0.45639 | $136.91700 |
| 500 | $0.44746 | $223.73000 |
| 1000 | $0.43844 | $438.44000 |
